The generator set must use a water jacket heater under certain circumstances

Brief Description of How a Jacket Water Heater Works

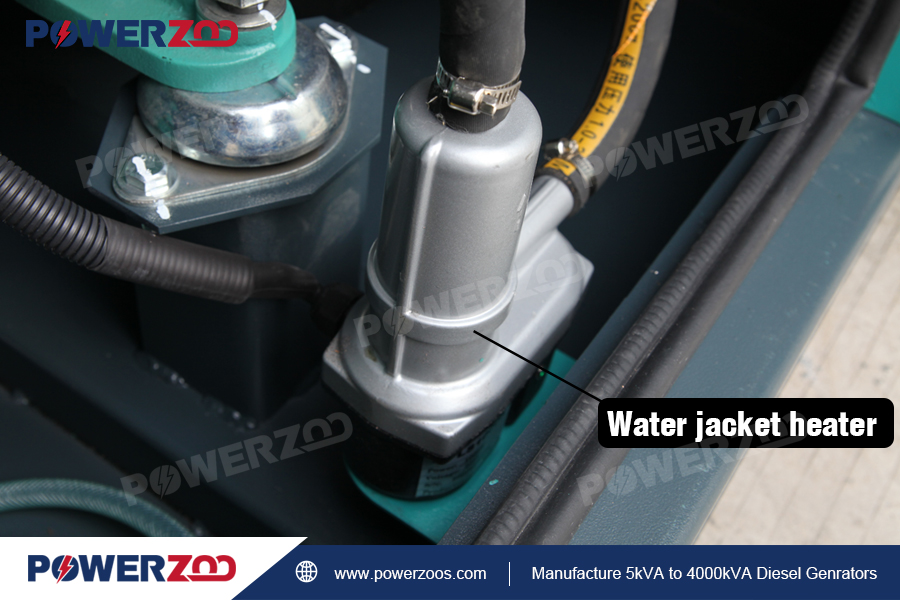

A jacket water heater is an electric heating element installed directly in the engine's coolant passages (usually replacing a cylinder block plug). When powered, it heats the coolant, which circulates through the engine's water jacket and cylinder block via convection. This helps:

• Keep the coolant from freezing.

• Preheat the engine's metal parts, maintaining them at a specific temperature (typically controlled by a thermostat between 80°F and 100°F / 27°C and 38°C).

• Indirectly heats the oil in the oil pan through heat conduction, reducing its viscosity.

A generator setrequires a jacket water heater in specific environments, with the core purpose being to protect the engine, ensure it can start quickly and reliably when needed, and reduce wear.

Here are the specific environments and scenarios where a jacket water heater is necessary:

Here are the specific environments and scenarios where a jacket water heater is necessary:

1. Low-Temperature Environments (The Primary and Most Common Reason)

A jacket water heater must be considered when the ambient temperature drops below 4°C (approximately 39°F).

Prevents Coolant Freezing: Low temperatures can cause the engine coolant to freeze. Since ice has a larger volume than water, it can expand and crack critical components like the engine cylinder block, cylinder head, and radiator, leading to catastrophic and expensive damage.

Ensures Reliable Starting:

• Engine Oil Viscosity: At low temperatures, engine oil becomes very viscous (like syrup) and its fluidity deteriorates. This places a high load on the starter motor, making starting difficult and drastically increasing battery drain.

• Battery Performance: Battery chemical activity decreases significantly in the cold, leading to a substantial drop in capacity and discharge ability. A cold start requires more current, and combined with the resistance from viscous oil, can easily cause the battery to become "depleted" and fail to start the engine.

• Combustion Conditions: A cold engine cylinder has a low temperature, leading to poor atomization of diesel fuel, making it difficult to compress and ignite. This results in startup failure or unstable operation after starting.

• Reduces Cold-Start Wear: Statistics show that over 80% of engine wear occurs at the moment of cold startup. If the engine is ice-cold, the oil pump takes a long time to circulate the viscous oil to all critical friction points like the crankshaft, camshaft, and turbocharger. During this period of "dry friction" or "boundary lubrication," component wear is severe. A jacket water heater pre-warms the engine oil (through heat conduction and convection), significantly reducing this wear.

2. Standby/Emergency Generator Sets (A Critical Application Scenario)

For backup power used in places like hospitals, data centers, communication base stations, financial centers, and fire protection systems, a jacket water heater is almost always standard equipment.

• Ensures Instant Reliability: These generator sets may sit idle for long periods but must start automatically and assume the full electrical load within seconds or tens of seconds during a power outage. If the engine is cold and fails to start or is delayed, the consequences can be dire. The jacket water heater keeps the unit in a "warm standby" state, ready for immediate operation.

• Prepares for Unforeseen Events: Power grid failures can occur on the coldest night of the year. Without a preheater, the standby generator would be effectively useless.

3. High-Humidity Environments

Even in environments where the temperature does not drop below 0°C, a jacket water heater may be necessary if the air humidity is very high.

• Prevents Condensation: After the engine shuts down, it gradually cools. When the engine's temperature falls below the air's dew point, water vapor in the air can condense on the surface of cold internal parts (such as cylinder walls and the crankcase).

• Oil Emulsification: Water mixing with the engine oil can cause it to emulsify, forming a mayonnaise-like substance that severely degrades the oil's lubricating properties, accelerating wear and corrosion.

• Component Rust: Condensate can cause internal steel components to rust.
