What damage will occur when diesel generator radiator is choked?

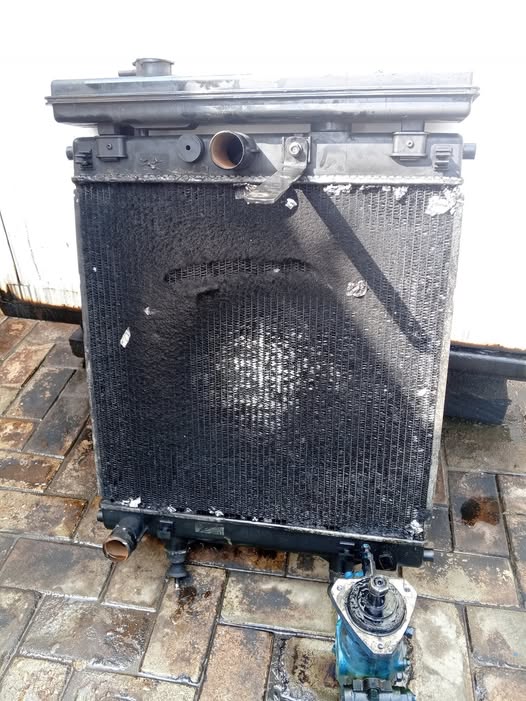

The radiator is an important component of the cooling system of a diesel generator set. Blockage of the radiator in a water-cooled generator set, whether caused by internal scale/impurities or external dust and fluff, will cause a series of serious and even irreversible damages to the unit.

The damage path can be simply summarized as follows:

Radiator blockage → Reduced cooling efficiency → Engine overheating → Lubrication failure & mechanical stress concentration → Devastating failures such as cylinder scoring, bearing seizure, and cylinder block deformation.

Direct Damage to the Engine (Most Severe, Highest Cost)

The engine is the "heart" of the generator set, and its operating temperature must be maintained within the design range.

Engine Overheating (Cylinder Scoring, Bearing Seizure):

Piston and Cylinder Scoring: At high temperatures, engine oil viscosity decreases, leading to poor lubrication and causing dry friction between the piston and cylinder, resulting in scratches (cylinder scoring). In severe cases, the piston may seize up inside the cylinder (cylinder seizure).

Crankshaft and Bearing Erosion: Also due to lubrication failure, the oil film between the crankshaft and bearings ruptures, leading to direct metal-to-metal contact. The metal melts at high temperatures and adheres together (bearing seizure).

Consequences: This is one of the most serious mechanical failures, requiring a major overhaul and replacement of core components such as pistons, cylinder liners, crankshaft, and bearings. Repair costs are extremely high, and it may even lead to engine failure.

Cylinder Head and Cylinder Block Deformation or Cracks:

Damage: Aluminum alloy cylinder heads and cylinder blocks can warp and deform, or even crack, when severely overheated.

Consequences: This leads to cylinder head gasket failure (bulk head gasket blowout), allowing coolant to enter the engine oil or combustion chamber, and engine oil to enter the cooling system, causing more complex malfunctions. Repair requires replacement or machining of the cylinder head and block, resulting in high costs.

 Impact on Performance and Economy

Reduced Output Power:

The engine has a high-temperature protection function. When it detects excessively high coolant temperature, the electronic control system (ECU) actively limits fuel injection, reducing engine power to protect the engine. This directly prevents the generator set from reaching its rated power output.

Deteriorating Combustion Efficiency, Increased Fuel/Gas Consumption:

An overheated environment increases intake air temperature and reduces air density, leading to incomplete fuel combustion.

Consequences: Increased fuel consumption, higher operating costs, and the production of more carbon deposits and black smoke, further worsening operating conditions.

Oil Performance Degradation:

High temperatures accelerate oil oxidation and decomposition, rapidly reducing its lubricating, cleaning, and viscosity properties.

Consequences: This not only exacerbates engine wear but also shortens oil change intervals, increasing maintenance costs.

Chain Reaction Damage to Other System Components

Radiator Damage:

Internal blockage can obstruct water flow, causing excessive local pressure and potentially leading to radiator hose bursting.

Water Pump Damage:

If internal blockage causes excessive water flow resistance, it increases the water pump load, accelerates wear on the impeller and seals, and leads to premature water pump failure.

Cylinder Head Gasket Damage:

As mentioned earlier, high temperature and thermal stress are the main causes of cylinder head gasket failure. A damaged cylinder head gasket can cause various problems such as oil emulsification, excessive coolant consumption, and engine misfiring.

To prevent radiator blockage, the following must be done:

• Regular External Cleaning:

Depending on the operating environment (e.g., dusty, lint-  prone locations), regularly clean the radiator fins from the inside out with compressed air or a low-pressure water gun to ensure proper ventilation.

•  Regular Internal Cleaning and Maintenance:

Use qualified antifreeze/coolant instead of ordinary tap water, as antifreeze has anti-scaling, anti-rust, anti-boiling, and anti-freezing functions.

Strictly adhere to the manufacturer's recommended intervals (usually every 2 years or a certain number of operating hours) for coolant replacement and cleaning of the cooling system.

• Daily Monitoring:

Closely monitor the water temperature gauge or alarm lights during operation. If an abnormally high water temperature is detected, immediately reduce the load and stop the machine for inspection; never force operation.

• Preventative Measures:

In harsh environments, install protective screens on the radiators and regularly clean debris from these screens.
