Vibration Isolator Selection & Application Guide for Generator Set Installations

— Solve Generator Vibration, Noise and Structural Damage Issues
Diesel generator sets are the core backup power guarantee for data centers, hospitals, commercial complexes, industrial parks and residential supporting facilities. During full-load operation, the engine and alternator produce continuous strong mechanical vibration and low-frequency noise.

If vibration isolation measures are not properly configured, the vibration will be transmitted to the foundation, building structure and surrounding equipment through the unit base, triggering structural resonance, noise disturbance, accelerated aging of unit parts, and even affecting the stable operation of surrounding precision electrical equipment.

Therefore, reasonable selection and installation of professional generator vibration isolators has become an indispensable key link in generator room design, containerized power station integration and equipment overall installation.

Main Pain Points Caused by Generator Vibration

1. Structural Building Damage

Long-term unisolated vibration will be transmitted to the floor, load-bearing wall and foundation, causing structural loosening, wall cracking and foundation fatigue damage, especially for generator rooms installed on the basement floor or high-rise equipment floors, with hidden dangers of long-term building safety.

2. Low-Frequency Noise Pollution

Structure-borne vibration will form low-frequency rumble noise, which spreads far through the building structure. It is easy to cause noise complaints in residential areas, schools, hospitals and other noise-sensitive scenarios, and fails to meet environmental protection noise emission standards.

3. Shortened Service Life of Generator Accessories

Continuous vibration will aggravate the wear of engine bearings, alternator components, control cabinet instruments, fuel pipelines and electrical wiring, easily causing loose wiring, pipeline leakage, instrument failure, increasing later maintenance costs and unexpected shutdown risks.

4. Limitations of Traditional Isolation Solutions

Ordinary rubber shock pads are low in cost but have insufficient load-bearing capacity, easy aging and deformation, poor isolation effect for high-power units, and cannot avoid resonance; simple base cushioning cannot solve the fundamental problem of vibration transmission, and cannot adapt to containerized mobile power stations and long-term outdoor working conditions.

Core Application Requirements for Generator Vibration Isolation

1. Efficient Vibration Isolation

It is necessary to isolate the dynamic and static vibration of the generator set in all directions, cut off the vibration transmission path from the unit to the foundation, and suppress structural resonance.

2. Noise Compliance Control

Effectively reduce structure-borne noise and low-frequency vibration noise, meet urban environmental protection noise standards, and adapt to sensitive surrounding environments.

3. Heavy Load & Durability

Suitable for high-power generator sets with large overall weight, strong compression resistance, corrosion resistance, no deformation for long-term use, and adapt to outdoor high temperature, humidity and rainy working conditions.

4. Easy Installation & Universal Matching

It can be perfectly matched with standard generator base, container integral base and civil foundation, no need for complicated foundation transformation, convenient bolt fixing, suitable for new installation and later renovation and upgrading.

Core Application Requirements for Generator Vibration Isolation

1. Efficient Vibration Isolation

It is necessary to isolate the dynamic and static vibration of the generator set in all directions, cut off the vibration transmission path from the unit to the foundation, and suppress structural resonance.

2. Noise Compliance Control

Effectively reduce structure-borne noise and low-frequency vibration noise, meet urban environmental protection noise standards, and adapt to sensitive surrounding environments.

3. Heavy Load & Durability

Suitable for high-power generator sets with large overall weight, strong compression resistance, corrosion resistance, no deformation for long-term use, and adapt to outdoor high temperature, humidity and rainy working conditions.

4. Easy Installation & Universal Matching

It can be perfectly matched with standard generator base, container integral base and civil foundation, no need for complicated foundation transformation, convenient bolt fixing, suitable for new installation and later renovation and upgrading.

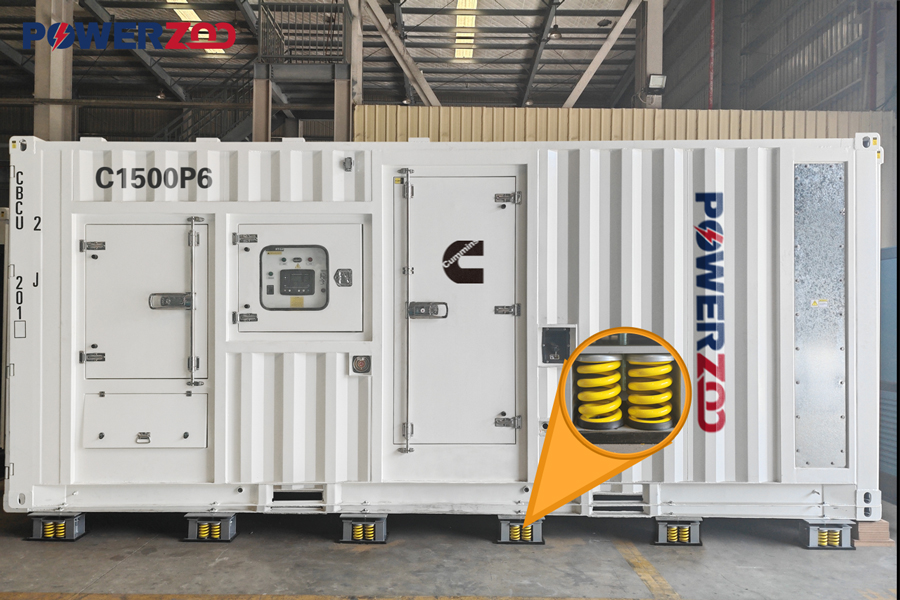

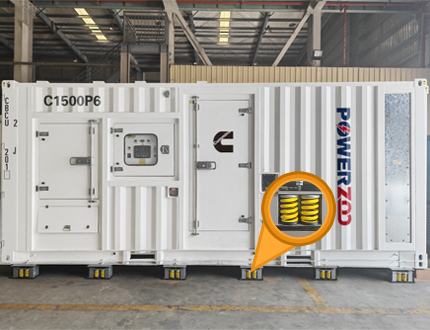

Our Heavy-Duty Spring Vibration Isolator Solution

Aiming at the above pain points and industry demands, we launch special spring vibration isolator for generator sets, which is specially optimized for high-power open-type and containerized generator sets, and solves vibration and noise problems from the source.

1. Low Natural Frequency Design

Adopt precision spring overall tuning design, the natural frequency is far lower than the operating frequency of the diesel engine, effectively avoid equipment resonance, vibration isolation efficiency is greatly improved, and cut off the vibration transmission of vertical and horizontal multi-direction.

2. Heavy Load Integral Structure

High-strength alloy steel spring + thickened steel shell base, strong load-bearing capacity, uniform force on a single point, suitable for 200kVA–2000kVA and above high-power generator sets, long-term compression without fatigue deformation.

3. Built-In Limit Protection Structure

Equipped with anti-offset and limit buffer structure, it can prevent excessive compression and displacement during unit start-up, shutdown and sudden load change; it is also suitable for container power station transportation and handling process, and maintains stable isolation performance.

4. Corrosion & Weather Resistance Treatment

The surface adopts anti-rust paint and galvanized protection process, resistant to outdoor wind, rain and high temperature aging, no need for daily maintenance, and the service life is synchronized with the generator set.

5. Simple & Fast Installation

Standard mounting hole position design, directly placed between the generator base and the foundation/container bottom frame, fixed by bolts, simple construction, saving installation cycle and civil engineering transformation cost.

Actual Effect After Installation

1. Vibration Isolation: The vibration transmission to the foundation and building structure is greatly reduced, effectively protecting the building foundation and surrounding precision equipment from vibration interference.

2. Noise Reduction: Low-frequency structure-borne rumble noise is significantly weakened, meeting environmental protection acceptance standards, and eliminating surrounding noise complaints.

3. Equipment Protection: Reduce the fatigue vibration of engine, alternator and control system, extend the service life of the whole unit, reduce failure rate and later maintenance cost.

4. Wide Compatibility: Suitable for data center generator room, hospital standby power station, container mobile power station, industrial factory building, commercial complex and all scenario applications of fixed generator set installation.
