Why Electrical Grounding (Earthing) Matters for Diesel Generator Installations

What is generator earthing?

Generator earthing is the process of connecting a generator and its electrical system to the ground to protect people, equipment, and the installation from electrical faults.

When people discuss diesel generator sets, they usually focus on:

• Engine Brand

• Fuel Efficiency

• Power Rating (kVA)

• Maintenance Cost

But one of the most critical aspects of a safe diesel generator sets installation is often overlooked:

Earthing (Grounding)

A diesel generator is only as safe as its earthing system.

A typical diesel generator set installation requires several earthing functions, including:

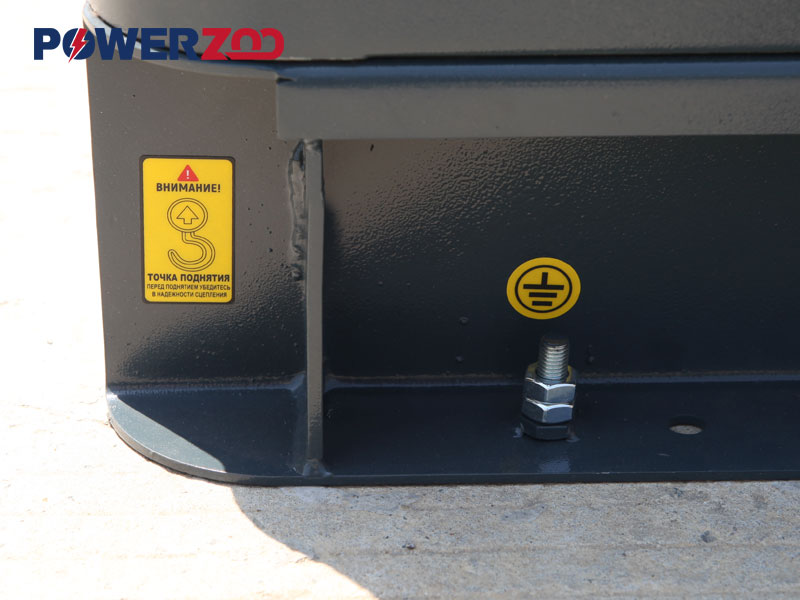

Equipment (Body) Earthing

Protects personnel and equipment in the event of insulation or electrical faults.

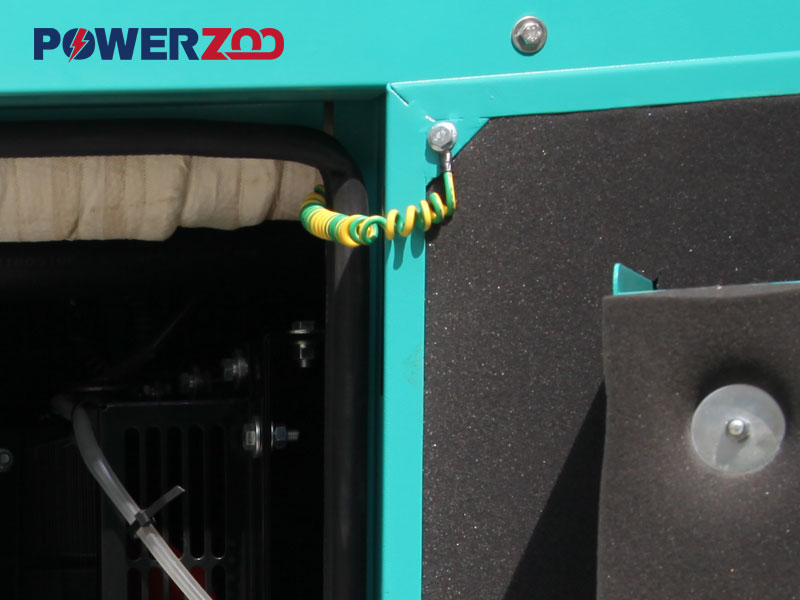

Door Bonding Wire: The grounding bonding wire ensures that the generator enclosure door remains electrically bonded to the generator frame, providing continuous protective grounding even when the door is opened and closed repeatedly.

Neutral Earthing

Provides a fault current path and allows protection devices to operate correctly.

Control Panel Earthing

Required for AMF panels, synchronization panels, PCC panels, and other control equipment to ensure stable and reliable operation.

Lightning Protection Earthing (where applicable)

Recommended for outdoor installations and critical infrastructure to reduce the risk of lightning damage.

Note: Depending on local electrical codes and project requirements, these earthing functions may use separate earth electrodes or share a common grounding grid.

Without proper earthing, a generator installation may face:

❌ Electric shock hazards

❌ Equipment damage

❌ Protection system malfunction

❌ Fire risks

❌ Unexpected downtime
