Why Is An Emergency Stop Essential for A Diesel Generator?

A diesel generator is designed to keep power running when everything else fails.

But what happens when the generator itself becomes the danger?

A fuel leak. An electrical fault. Abnormal vibration. Overspeed. Smoke or fire inside the enclosure.

In these situations, the priority is no longer keeping the generator running. The priority is stopping it quickly and safely.

That is why an Emergency Stop (E-Stop) is more than just another button on a generator control panel.

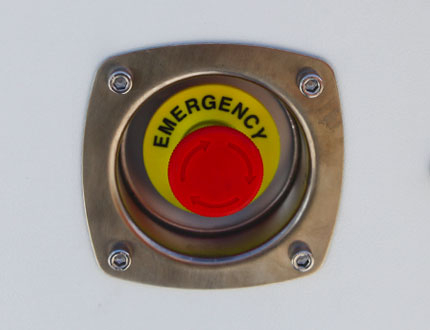

What Is an Emergency Stop?

An Emergency Stop is a manually operated shutdown device designed to stop the generator when continuing operation could create a dangerous situation.

Unlike a normal STOP command, an emergency stop is intended for situations where every second matters.

For larger or enclosed generator sets, the emergency stop should be accessible without requiring personnel to enter the generator room or enclosure. NFPA 110 requires at least one remote emergency stop switch for each prime mover, with the switch located outside the room or enclosure housing the prime mover.

The current ISO 8528-13:2026 standard also addresses emergency stopping for generator sets, including remote-controlled sets and sets with canopies or containers accessible by people.

Real Case: A Generator Fire

This is not a theoretical risk.

In a 2023 safety report, the International Marine Contractors Association (IMCA) described a diesel generator fire that occurred during testing after maintenance.

The generator had been running at operational speed for several minutes when a fire broke out around the alternator exciter. The alarm was raised, and the diesel generator was brought to an emergency stop before the fire was extinguished.

The investigation found that a misaligned internal cover caused friction against the shaft, producing sparks.

The incident caused damage to the alternator, but the potential consequence was much more serious: the fire could have spread throughout the engine room.

This case demonstrates an important principle:

A generator can pass a basic inspection and still develop a dangerous failure when operating under real conditions.

An accessible E-Stop provides operators with another layer of protection when something unexpected happens.

Why Location Matters

Putting an emergency stop button on the generator control panel is not always enough.

Imagine a fire inside the enclosure.

If the operator has to open the enclosure, approach the engine and reach the control panel before shutting it down, they may already be entering the danger zone.

A remotely located E-Stop allows the operator to stop the prime mover without entering the hazardous area.

Industry guidance specifically highlights this benefit: remote E-Stop positioning can reduce a person's exposure to hazards such as fuel fires or catastrophic mechanical failures.

When Is an Emergency Stop Especially Important?

An E-Stop becomes particularly valuable in:

• Rental generators — different operators may use the same machine.

• Construction sites — dust, fuel and changing working conditions increase risks.

• Mining projects — remote locations make rapid emergency response critical.

• Data centers — generators are often installed in enclosed or restricted areas.

• Hospitals — emergency power systems must balance equipment protection with life safety.

• Containerized generators — operators may need to shut down the unit without entering the container.

There is another important consideration: the emergency stop must not become an accidental source of downtime.

NFPA discussions around healthcare facilities have specifically recognized the risk of inappropriate or accidental activation, because shutting down an emergency generator can put critical loads at risk.

Therefore, E-Stop design should balance two requirements:

Easy to reach when there is a real emergency.
Protected against accidental operation during normal use.

More Than a Button

A reliable generator is not simply one that starts automatically when the power fails.

It should also know when to stop.

Overspeed, high coolant temperature, low oil pressure and other abnormal conditions can trigger automatic shutdown systems. Emergency stopping provides a separate manual layer of protection when the operator sees a dangerous condition that the automatic system may not immediately detect.

For generator manufacturers and users, the lesson is simple:

Power continuity is important. But safe power continuity is more important.

A well-designed diesel generator should give operators the ability to start quickly, monitor clearly, shut down normally — and, when necessary, stop immediately.

Because in a real emergency, the most important button on a generator may be the one you hope you never have to press.
