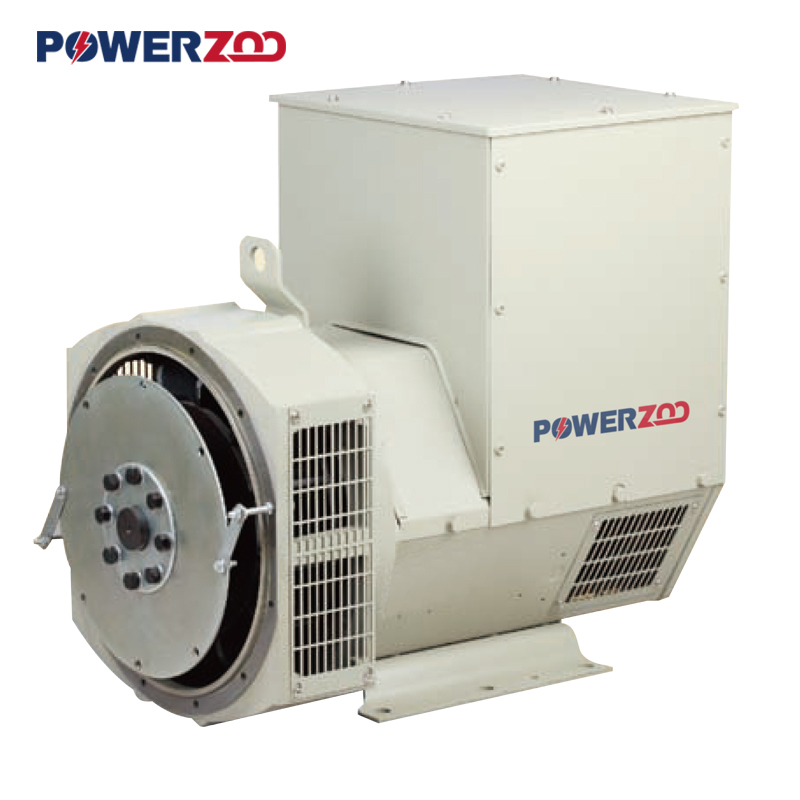

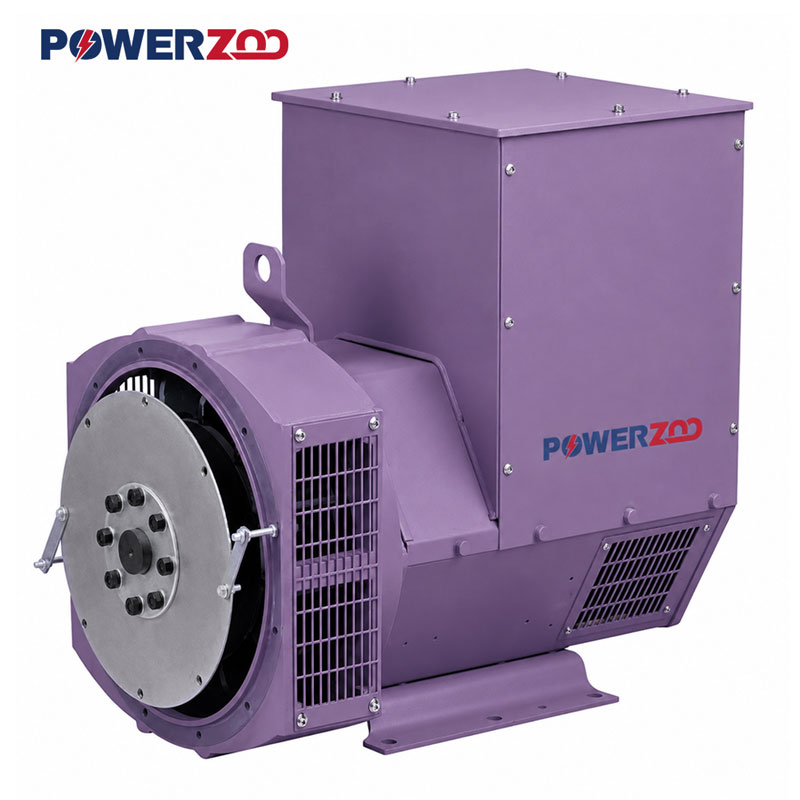

PZA224 Series 42.5kVA-103.8kVA Brushless Synchronous AC Alternators

Voltage:
120V ~ 690V

Power:
42.5kVA ~ 103.8kVA

Availability:



Inquiry

Product Description

ELECTRICALCHARACTER

EXCITATION SYSTEM

AVR：SX440，SX460，MX321，MX341

The main stator supplies power to the exciter stator via the AVR.

The efficiency semi-conductors of the AVR ensure building-up voltage by low residual magnetism of the magnet steel. The exciter rotor output is provided to the main rotor by a three-phase full wave bridge rectifier.

This rectifier is protected by a surge suppressor against surges ecused by short circuit or lost synchronization. Voltage regulation of SX440 AVR with three-phase induction detecting module<±0.5%. MX321 and MX341 suitable for the generator with permanent magnetic generator(PMG).

	PZA224 三相陆用发电机 THERE PHASE LAND ALTERNATOR
	50Hz(1500RPM)									60Hz(1800RPM)
环境温升 Ambient temperature	常用40℃			峰值40℃			峰值27℃			常用40℃			峰值40℃			峰值27℃
温长Temperature rise	常用125℃			备用125℃			备用163℃			常用125℃			备用125℃			备用163℃
电压 VOLTAG（V）	380	400	415	380	400	415	380	400	415	416	440	480	416	440	480	416	440	480
PZA224C
额定容量 RATED CAPACITY	42.5	42.5	42.5	45.0	45.0	45.0	46.8	46.8	46.8	50.0	52.5	55.0	53.1	55.0	58.1	55.0	56.3	60.0
额定功率 RATED POWER(kW)	34.0	34.0	34.5	36.0	36.0	36.0	37.4	37.4	37.4	40.0	42.0	44.0	42.5	44.0	46.5	44.0	45.0	48.0
输入功率 INPUT POWER(KVA)
效率 % EFFICIENCY	86.6	87.1	87.4	86.2	86.2	87.1	86.0	86.6	86.9	87.1	87.5	88.1	86.7	87.2	87.8	86.8	87.1	87.6
PZA224D
额定容量 RATED CAPACITY	50.0	50.0	50.0	53.0	53.0	53.0	55.0	55.0	55.0	60.0	62.5	65.0	62.5	65.0	68.8	65.0	66.3	71.3
额定功率 RATED POWER(kW)	40.0	40.0	40.0	42.4	42.4	42.4	44.0	44.0	44.0	48.0	50.0	52.0	50.0	52.0	55.0	52.0	53.0	57.0
输入功率 INPUT POWER(KVA)
效率 % EFFICIENCY	87.7	88.2	88.5	87.4	87.4	88.2	87.2	87.7	88.0	88.0	88.4	89.0	87.8	88.2	88.7	87.5	88.1	88.5
PZA224E
额定容量 RATED CAPACITY	60.0	60.0	60.0	61.0	61.0	61.0	63.0	63.0	63.0	67.5	70.0	75.0	70.0	73.8	78.8	72.5	75.0	80.0
额定功率 RATED POWER(kW)	48.0	48.0	48.0	48.8	48.8	48.8	50.4	50.4	50.4	54.0	56.0	60.0	56.0	59.0	63.0	58.0	60.0	64.0
输入功率 INPUT POWER(KVA)
效率 % EFFICIENCY	88.3	88.8	89.1	88.2	88.2	89.0	88.0	88.5	88.8	88.8	89.2	89.6	88.6	88.9	89.4	88.4	88.8	89.3
PZA224F
额定容量 RATED CAPACITY	72.5	72.5	72.5	77.0	77.0	77.0	80.0	80.0	80.0	83.8	87.5	93.8	88.8	92.5	100.0	91.9	95.0	102.5
额定功率 RATED POWER(kW)	58.0	58.0	58.0	61.6	61.6	61.6	64.0	64.0	64.0	67.0	70.0	75.0	71.0	74.0	80.0	73.5	76.0	82.0
输入功率 INPUT POWER(KVA)
效率 % EFFICIENCY	89.6	89.9	90.1	89.4	89.4	89.9	89.2	89.6	89.8	90.0	90.3	90.6	89.8	90.1	90.4	89.6	89.9	90.3
PZA224G
额定容量 RATED CAPACITY	85.0	85.0	85.0	87.5	87.5	87.5	90.8	90.8	90.8	93.8	97.5	103.8	98.1	102.5	110.0	101.3	106.3	113.8
额定功率 RATED POWER(kW)	68.0	68.0	68.0	70.0	70.0	70.0	72.6	426.	72.6	75.0	78.0	83.0	78.5	82.0	88.0	81.0	85.0	91.0
输入功率 INPUT POWER(KVA)
效率 % EFFICIENCY	89.8	90.2	90.4	89.7	89.7	90.3	89.6	89.9	90.1	90.5	90.8	91.0	90.3	90.6	90.9	90.2	90.4	90.8

Note:

The generators have been designed for use in a maximum ambient temperature of 40℃ and altitude less than 1000m above sea level
Other special voltage range can be met by POWERZOO company
